¶ Introduction
This Configuration Guide provides step-by-step instructions for configuring the Fanvil Linkvil W710H base station for use with PBXware. Support for the W710H base station is available starting with PBXware version 8.2.
¶ Requirements

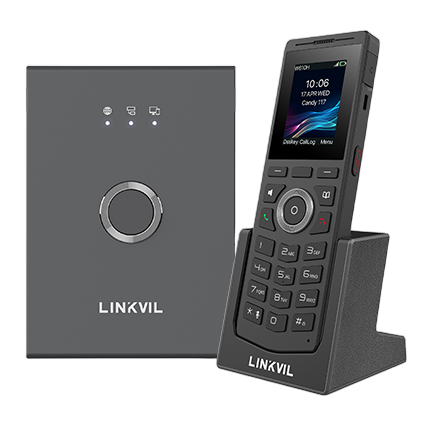

¶ Identifying the Base Station and Handset
Before starting the configuration, verify that you have the correct Fanvil devices.
The model information is printed on the label located on the back of both the W710H base station and the W610H handset. This guide applies specifically to the Fanvil Linkvil W710H base station used with the W610H handset. Other Fanvil models may require different configuration steps.
¶ Firmware Version
- Ensure that the Fanvil Linkvil W710H base station is running firmware version 1.2.13.
- To verify the firmware version, open a web browser and enter the IP address of the W710H base station. Example:
http://192.168.1.22 - Log in to the web administration interface using your administrator credentials. By default, the username is admin and the password is admin.
- Navigate to System > Information.
- The Software field displays the current firmware version.
¶ DHCP Server
Fully configured and operational DHCP server.
¶ PBXware Version
PBXware version 8.2
To check the PBXware version:
- Log in to PBXware
- Navigate to Settings: About.
At the top of the About page, you will see a code block similar to this:
PBXware Edition: Multi-Tenant, Release: 8.2 (387597b7), Running: 18.15.0.-gc-b47edc45, PBXware Proxy v8 (62b7bcd), API: 8, libmemcached version: 1.0.18
The Release field indicates the exact version of your PBXware.
¶ Installation
This section explains how to power on the Fanvil Linkvil W710H base station and W610H handset, connect the base station to a network, locate its IP address, and restore the system to its factory default settings.
Topics covered:
- Power Connection
- Configure the W710H as Manager
- Find the Base Station IP Address
- Factory Reset the Base Station
¶ Power Connection
The W710H base station can be powered using either Power over Ethernet (PoE) or an external power adapter.
¶ Power over Ethernet (PoE)
- Connect an Ethernet cable to the LAN port on the W710H base station.
- Connect the other end of the cable to a PoE switch.
- The base station powers on automatically and obtains an IP address automatically.
¶ External Power Adapter
- Connect the supplied power adapter to the DC power port on the W710H base station.
- Plug the power adapter into an electrical outlet.
- Connect an Ethernet cable from the LAN port of the base station to your network switch or router.
- If a DHCP server is available on the network, the base station obtains an IP address automatically.
NOTE: If you are using Power over Ethernet (PoE), you don't need to connect the AC adapter. Make sure that the Ethernet cable and router or switch are Power over Ethernet (PoE) compliant.
¶ Configure the W710H as Manager
Before configuring the device, ensure that the W710H is operating in Manager mode.
- Open the W710H web administration interface.
- Navigate to Manager > Work Role.
- Select Manager.
- Click Apply.
- Wait for the base station to reboot.
NOTE: After rebooting, the W710H operates in Manager mode.
¶ Find the Base Station IP Address
To access the W710H base station's web administration interface, you must first determine its IP address.
- Ensure that the base station is connected to the network and has completed the startup process.
- The assigned IP address can be identified using a network scanning utility.
¶ Factory Reset the Base Station
This step is not required for a brand-new, out-of-the-box device. However, if the W710H base station has been previously used, performing a factory reset is recommended before configuration.
To restore the W710H base station to its factory default settings:
- Open a web browser and enter the base station's IP address. For example:
http://192.168.1.22. - Log in to the web administration interface. By default, the username is admin and the password is admin.
- Navigate to Configurations.
- Scroll to the Reset Devices section.
- Click Reset to restore the base station to its factory default settings.
- Wait for the base station to reboot before continuing with the configuration.
NOTE: Do not disconnect the base station from power or the network while the reset process is in progress.
¶ Registering the Base Station
This section describes how to register the W710H base station with PBXware using either manual configuration or auto provisioning.
The following topics are covered:
- Manual Configuration
- Auto Provisioning
¶ Manual Configuration
This section describes how to configure the UAD settings, create a PBXware extension, and register the W710H base station.
The following topics are covered:
- UAD Settings
- Creating an Extension
- Registering the Base Station
¶ UAD Settings
1. Log in to PBXware's web administration interface
- Open a new browser window and enter the PBXware IP address to access the administration login screen. Example:
http://192.168.1.10 - Log in to PBXware with your e-mail address and password.
2. UAD settings
- Navigate to Settings > UAD.
- Ensure that the Fanvil W710H UAD is enabled. To check the UAD status, click the Edit icon corresponding to the Fanvil W710H base station.
- Verify that Status is set to Active, Auto provisioning is set to No, and DHCP is set to Yes.
- Click the Save button.
¶ Creating an Extension
1. Add Extension
-
Navigate to Extensions, then click Add Extension.
-
The standard options window will open.
-
Select the Fanvil W710H base station from the UAD dropdown menu.
-
Select the Location: Local or Remote.
- Local is for all Extensions registered on the LAN
- Remote is for all Extensions registered from remote networks, WAN, Internet etc.
-
Click the Next step button.
2. Extension Values
Enter values into the required field text boxes.
REQUIRED FIELDS:
- Name
Enter a name for the extension being created. Example: John Smith.
Enter the e-mail address associated with this extension. This e-mail address will receive all system notification messages. Example: john.smith@bicomsystems.com
- Click on the Save button.
¶ Registering the Base Station
This section describes how to register the W710H base station using Hostname or IP Address.
¶ Configure the SIP Server
Before creating a SIP account, you must configure the SIP server.
- Open a web browser and enter the W710H base station's IP address. For example:
http://192.168.1.22 - Log in to the web administration interface. By default, the username is admin and the password is admin.
- In the left-hand navigation menu, click SIP Account.
- Select the SIP Server List tab.
- Click the Edit icon for the server entry you want to configure.
- Enter the PBXware server information into the corresponding fields.
REQUIRED FIELDS:
- Name
Enter a descriptive name for the SIP server. Example: PBXware.
- Server Address
Enter the PBXware Hostname or IP Address. Example: pbx.company.com or 192.168.1.10
- Server Port
Enter the SIP port used by the PBXware server. The default value is 5060.
- Click Confirm to save the SIP server configuration.
¶ Configure the SIP Account
- Select the SIP Accounts tab.
- Click Add to create a new SIP account.
- Enter the following information into the corresponding fields.
REQUIRED FIELDS:
-
SIP Account Name
A descriptive name for the SIP account. Example: John Smith
-
Server Name
Select the previously configured PBXware server from the drop-down list.
-
User Number
Enter the PBXware extension number. Example: 1003
-
Authentication User
Enter the PBXware extension number. Example: 1003
-
Authentication Password
Enter the extension Secret as provided in the PBXware extension details. Example: _%Z4M3*Ts9y7
-
Click Confirm to save the SIP account.
-
Verify that the account status changes to Registered (green status indicator).
-
To confirm successful registration, dial *123 from the registered handset.
¶ Assigning a SIP Extension to the Handset
After creating the SIP account, assign it to the desired handset.
- Navigate to Devices > Handset.
- Select the desired handset and click Edit.
- Under Line 1, configure the following:
- SIP Server
- SIP Extension
- Click Confirm to save the configuration.
- Verify that the handset is successfully registered.
- To confirm successful registration, dial *123 from the handset.
¶ Auto Provisioning
This section describes how to configure the W710H base station for automatic provisioning using PBXware.
The following topics are covered:
- UAD Settings
- Creating an Extension
- Provisioning the Base Station
¶ UAD Settings
1. Log in to PBXware's web administration interface
- Open a browser window and enter the PBXware IP address to access the web administration login screen. Example:
http://192.168.1.10 - Log in to PBXware with your e-mail address and password
2. UAD settings
- Navigate to Settings > UAD.
- Ensure that the Fanvil W710H UAD is enabled. To check the UAD status, click the Edit icon corresponding to the Fanvil W710H base station.
- Verify that Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes.
- Click the Save button.
¶ Creating an Extension
1. Add Extension
-
Navigate to Extensions, then click Add Extension.
-
The standard options window will open.
-
Select the Fanvil W710H base station from the UAD dropdown menu.
-
Select the Location: Local or Remote.
- Local is for all Extensions registered on the LAN
- Remote is for all Extensions registered from remote networks, WAN, Internet etc.
-
Click the Next step button.
2. Extension Values
Enter values into the required field text boxes.
REQUIRED FIELDS:
- Name
Enter a name for the extension being created. Example: John Smith.
Enter the e-mail address associated with this extension. This e-mail address will receive all system notification messages. Example: john.smith@bicomsystems.com
- Auto Provisioning
Set to Yes.
- MAC Address
Enter the MAC address of the Fanvil base station. Example: 001565FF1536
NOTE: The MAC address can be found on the label at the back of the base station.
- Click the Save button.
¶ Provisioning the Base Station
This section describes how to configure the W710H base station for auto provisioning using TFTP, HTTP, or HTTPS.
¶ TFTP, HTTP, or HTTPS
- Open a web browser and enter the W710H base station's IP address. For example:
http://192.168.1.22 - Log in to the web administration interface. By default, the username is admin and the password is admin.
- Select the Auto Provision tab.
¶ Basic Settings
Configure the following settings:
-
Authentication Name
Enter the Auto Provisioning username.
-
Authentication Password
Enter the Auto Provisioning password.
-
Download CommonConfig Enabled
Ensure this option is disabled.
¶ Static Provisioning Server
Configure the following settings:
-
Server Address
Enter the PBXware Hostname or IP Address. Example:
pbx.company.comor192.168.1.10 -
Configuration File Name
Enter:
/prov/$mac.cfg -
Protocol Type
Select HTTP, HTTPS, or TFTP. NOTE: HTTP is recommended.
-
Update Mode
Select Update After Reboot.
-
Click Apply to save the configuration.
-
Scroll to the Autoprovision Now section.
-
Click Autoprovision Now.
-
Wait for the base station to download the configuration and reboot automatically.
¶ Assigning a SIP Extension to the Handset
After the base station has completed the auto provisioning process, assign the provisioned SIP extension to the desired handset.
For detailed instructions, refer to Manual Configuration → Assigning a SIP Extension to the Handset.
¶ Pairing the W610H Handset
This section describes how to pair a W610H handset with the W710H base station.
The following topics are covered:
- Enable Auto Authorization
- Configure the Wireless Network
- Pair the Handset
¶ Enable Auto Authorization
- Log in to the W710H web administration interface.
- Navigate to Devices > Handset.
- Enable Auto Authorized. NOTE: This option allows new W610H handsets to register automatically with the W710H Manager.
- Click Apply.
¶ Configure the Wireless Network
- Navigate to Network > Connection Settings.
- Configure the following settings:
SSID
Enter the wireless network name.
Old Password
Enter the current wireless password. If the default credentials are still in use, enter i+0%aY81.
New Password
Enter the new wireless password.
Confirm Password
Re-enter the new wireless password.
- Click Apply.
¶ Pair the Handset
On the W610H handset:
- Press the Menu soft key.
- Navigate to Network > Available Network.
- Select the configured SSID.
- Enter the wireless password.
- Wait for the handset to connect to the W710H base station.
Once the handset has successfully connected to the wireless network, it automatically registers with the W710H Manager.
NOTE: If the wireless network settings have not been changed, use the following default credentials:
- SSID: Fanvil-device-ssid
- Password: i+0%aY81
¶ Additional Configuration Template
To apply additional configuration settings for the Fanvil W710H, add the required parameters to the User Agent General Auto Provisioning Template under Settings → UAD → Fanvil W710H, or configure them directly for a specific extension in the UAD Auto Provisioning Template section.
